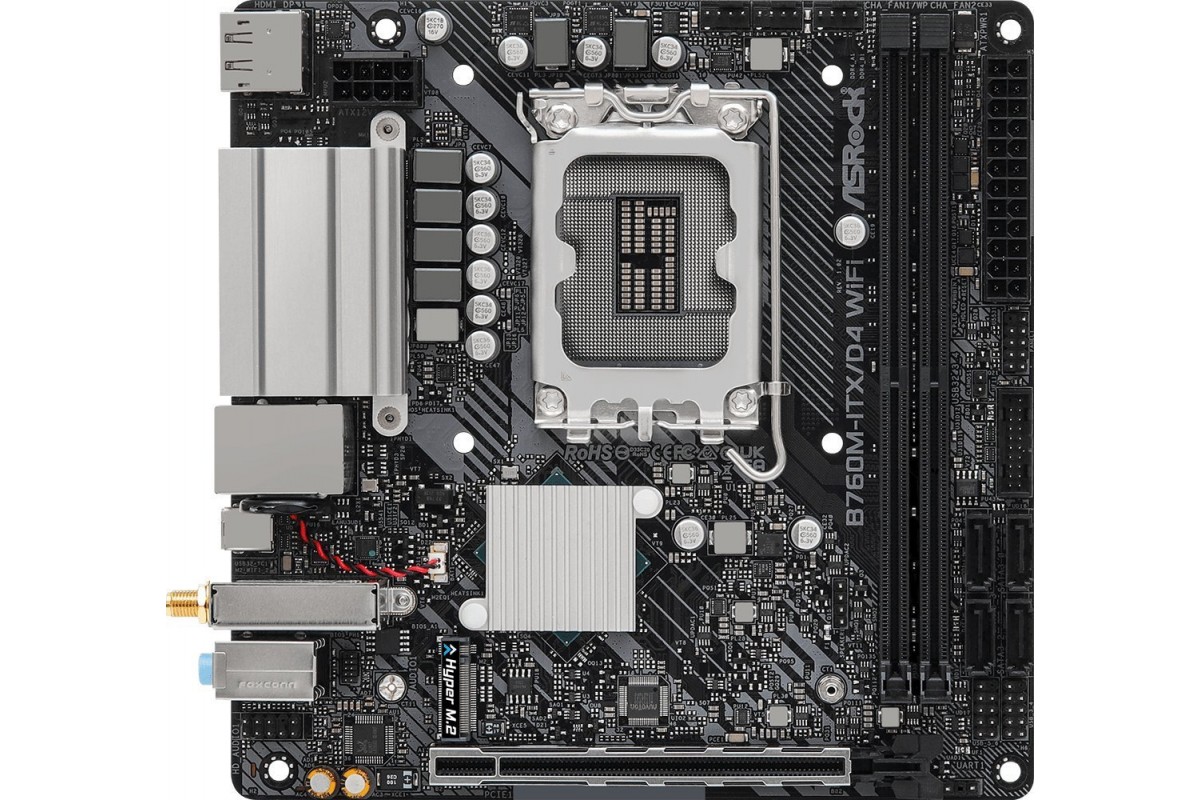

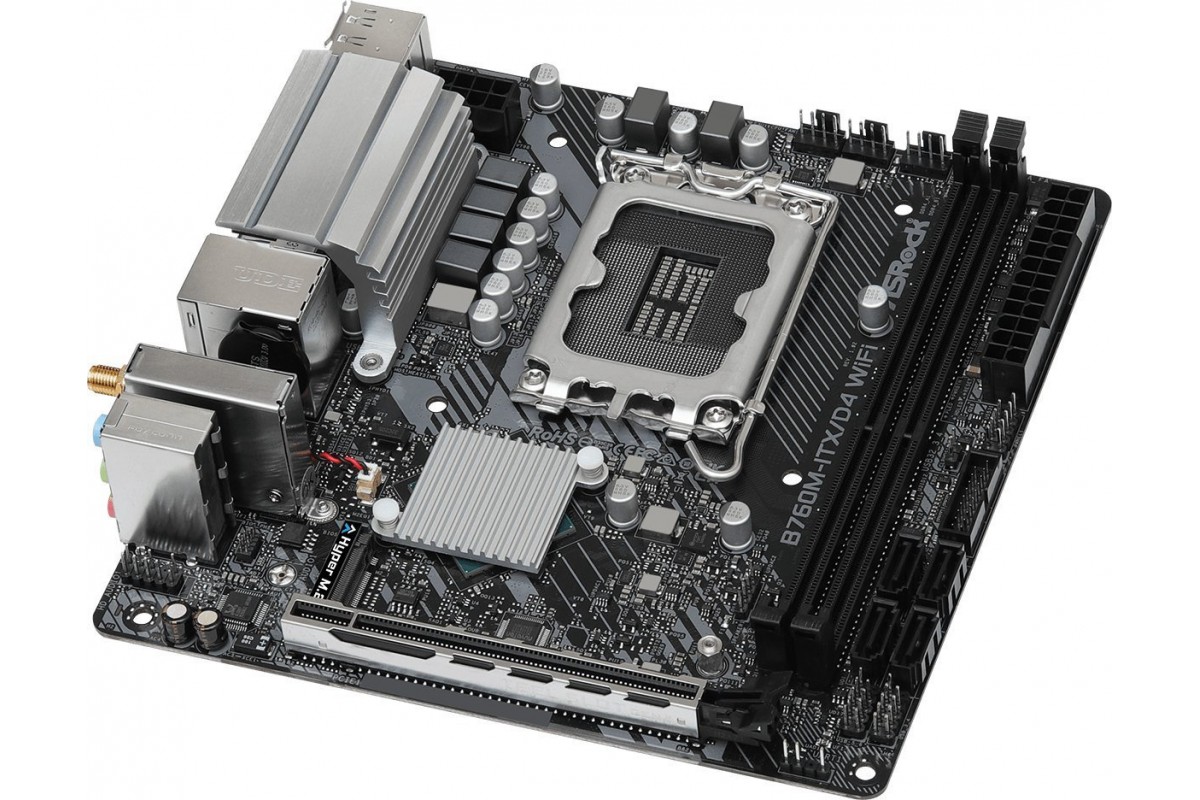

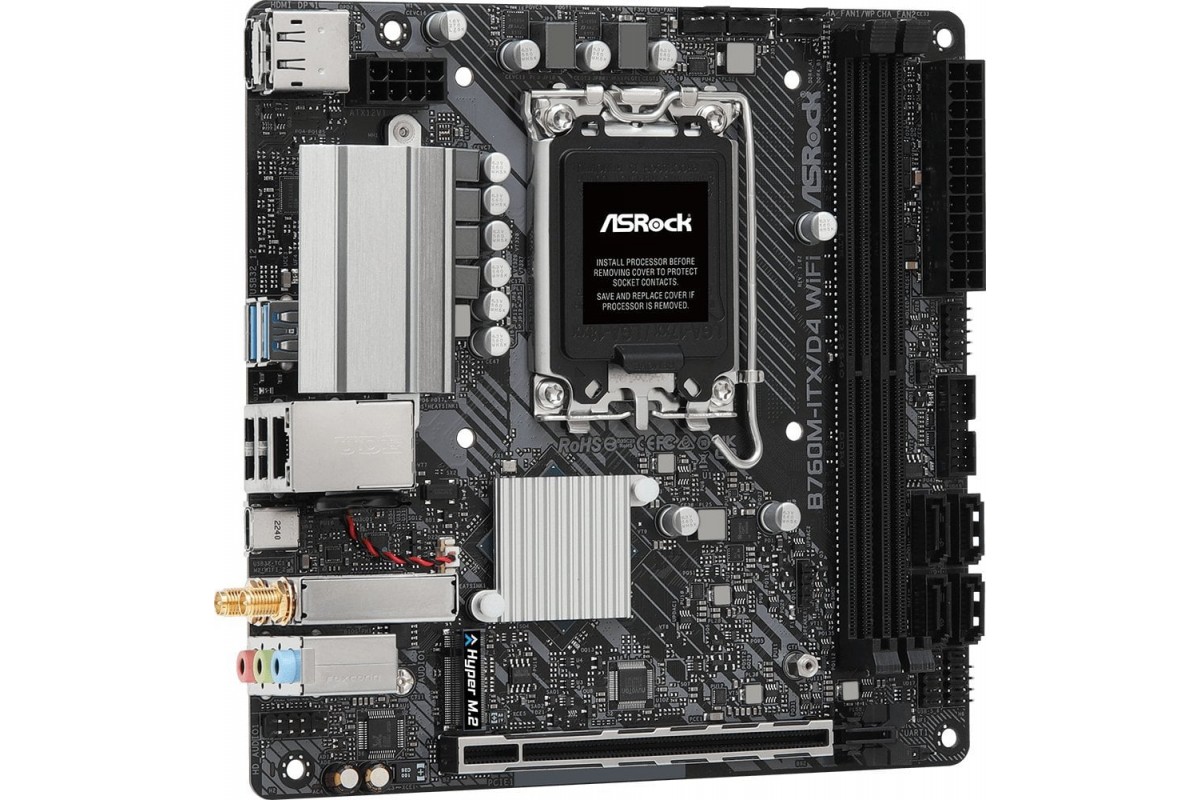

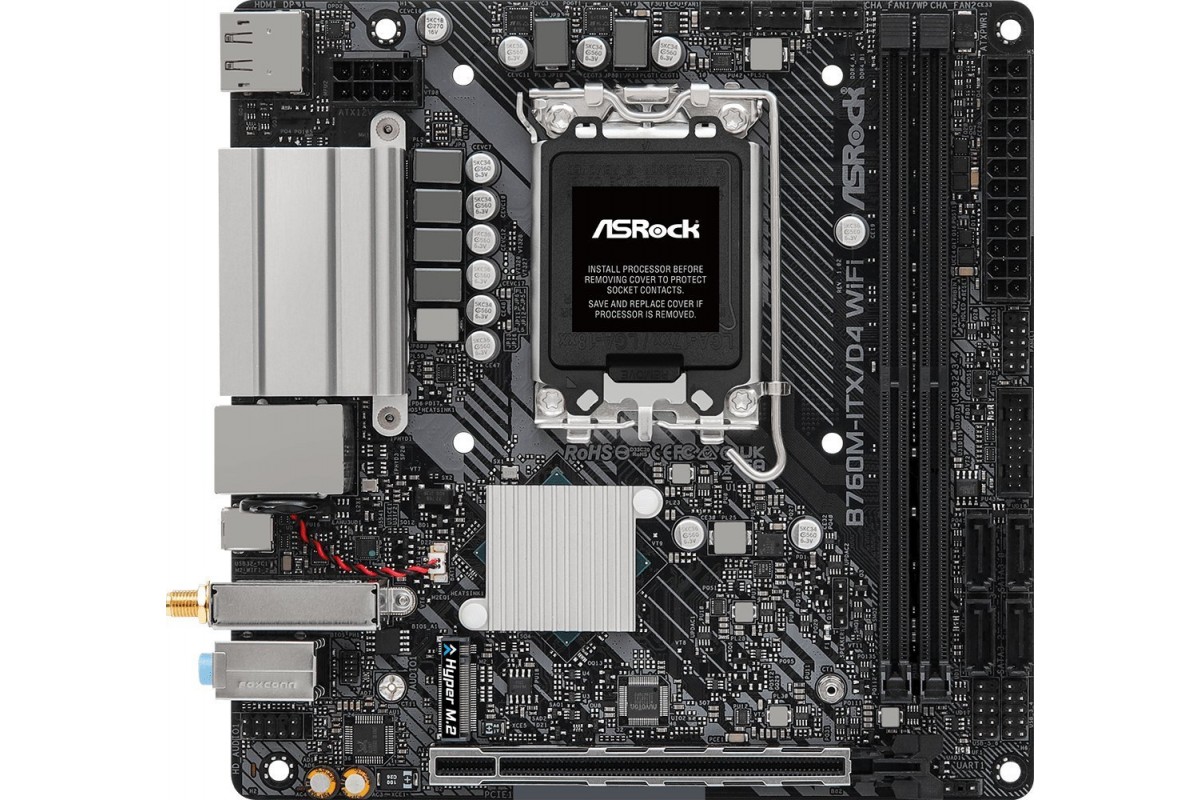

Intel B760 ASRock B760M-ITX/D4 WIFI

Motherboard Form Factor
Mini ITX
Motherboard Width [mm]
170
Motherboard Depth [mm]
170
Motherboard Color
Silver/White/Black
Motherboard Usage
Gaming
Motherboard Chipset
Intel B760
Motherboard CPU Socket
Socket 1700
Motherboard Supported Processors
Intel Celeron Intel Core i3 Intel Core i5 Intel Core i7 Intel Core i9 Intel Pentium Gold
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR4
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
2
Motherboard Memory Frequency
2400 MHz 2666 MHz 3000 MHz 3200 MHz 3600 MHz 4000 MHz 4266 MHz 4400 MHz 4600 MHz 4800 MHz 5333 MHz
Motherboard Maximum Memory Capacity
64 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 897
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000
Motherboard Network Card Chipset
Intel Wi-Fi 6E AX211 Realtek RTL8111H
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Motherboard Expansion Slots
M.2 Wi-Fi (1 szt.) PCI Express x16 (1 szt.)
Motherboard Drive Connectors
M.2 slot x1 SATA 3 x4
Motherboard Internal Connectors
USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze SYS FAN 4-pin x1

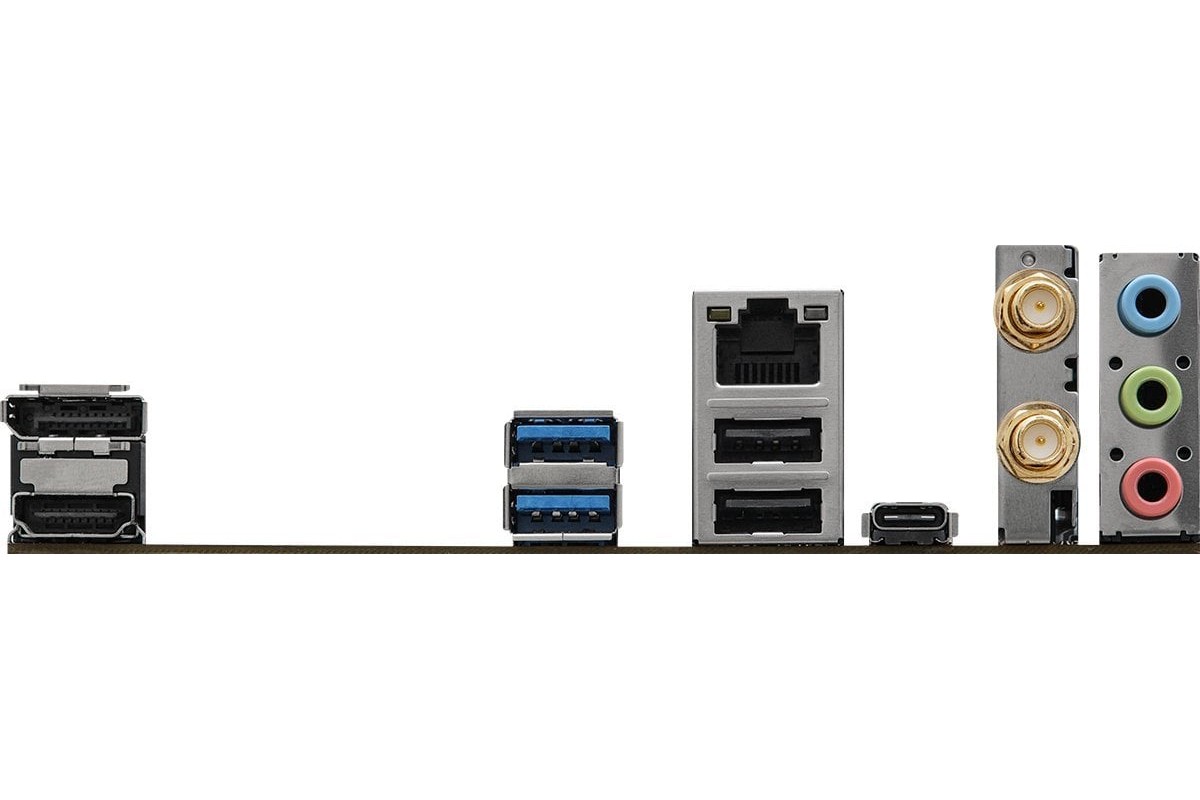

Motherboard Rear Panel
DisplayPort x1 HDMI x1 RJ-45 x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 USB-C 3.2 Gen 2x2 x1 Złącze anteny WiFi x2 Złącze audio x3

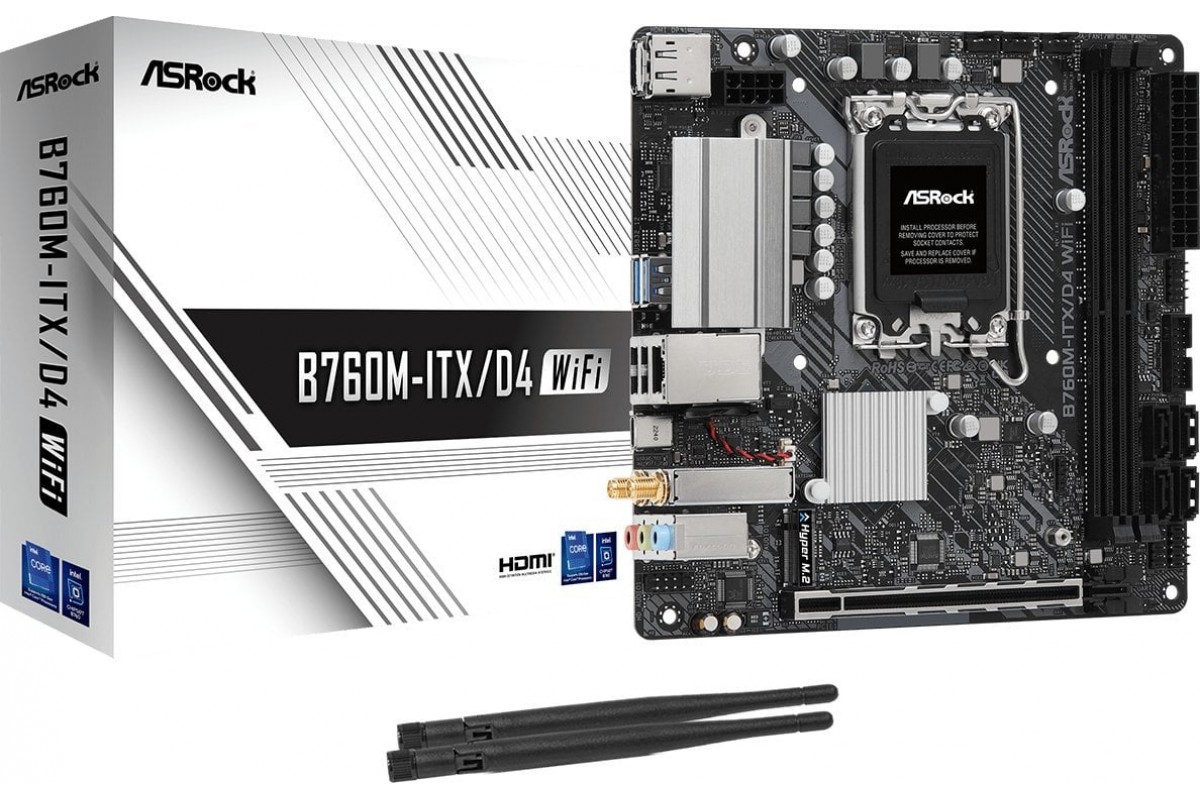

Motherboard Included Accessories
Antena WiFi x2 Osłona I/O Przewód SATA III x2 Śruby do modułu M.2
