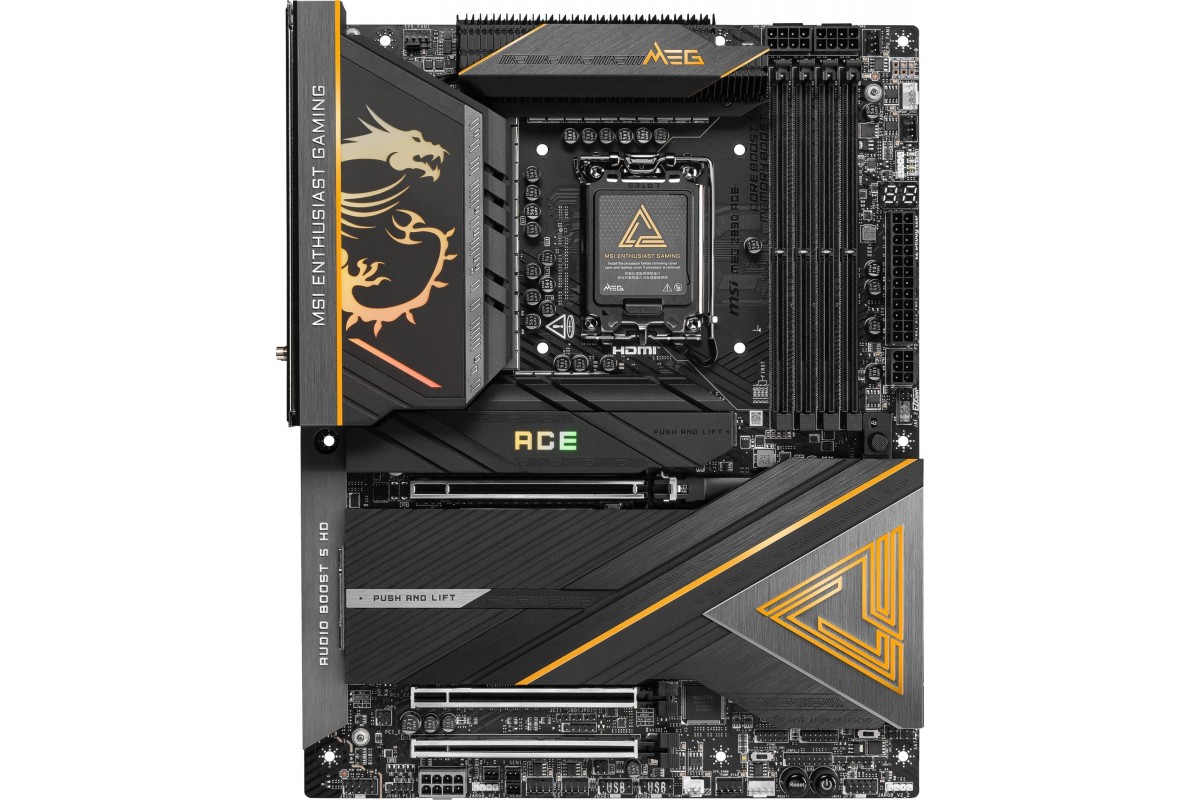

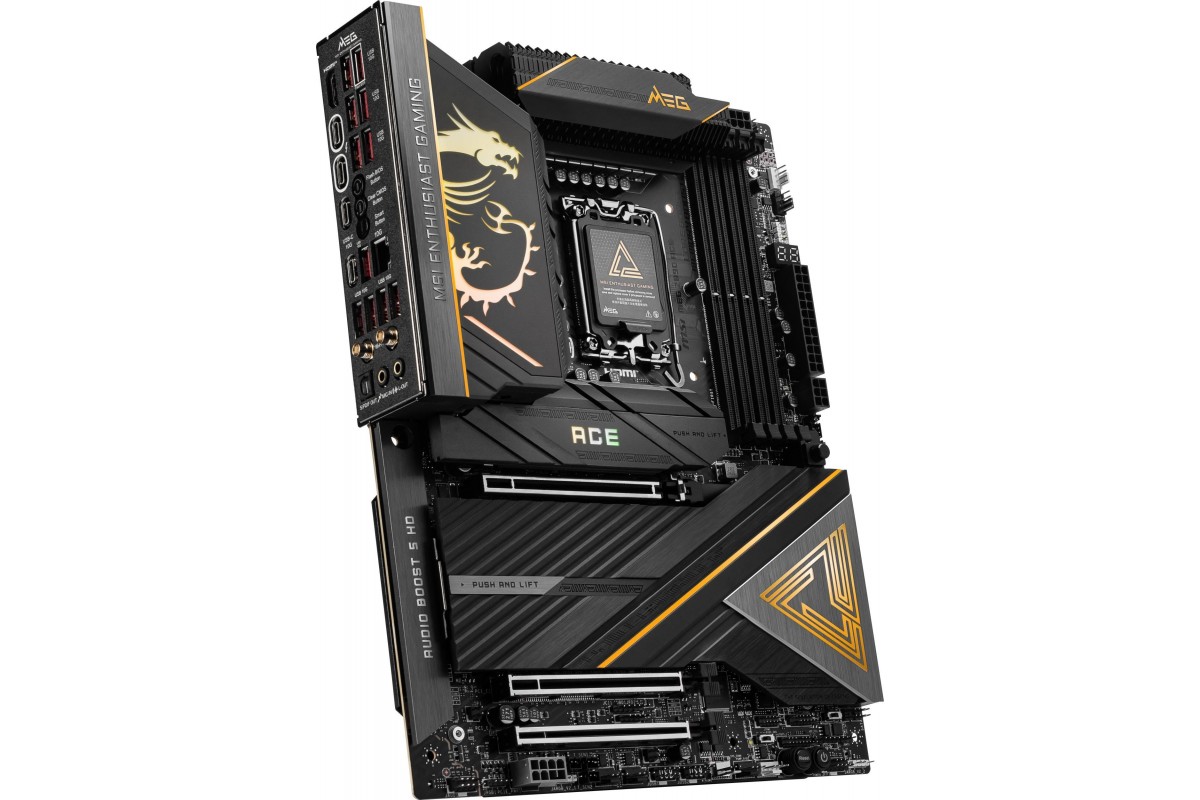

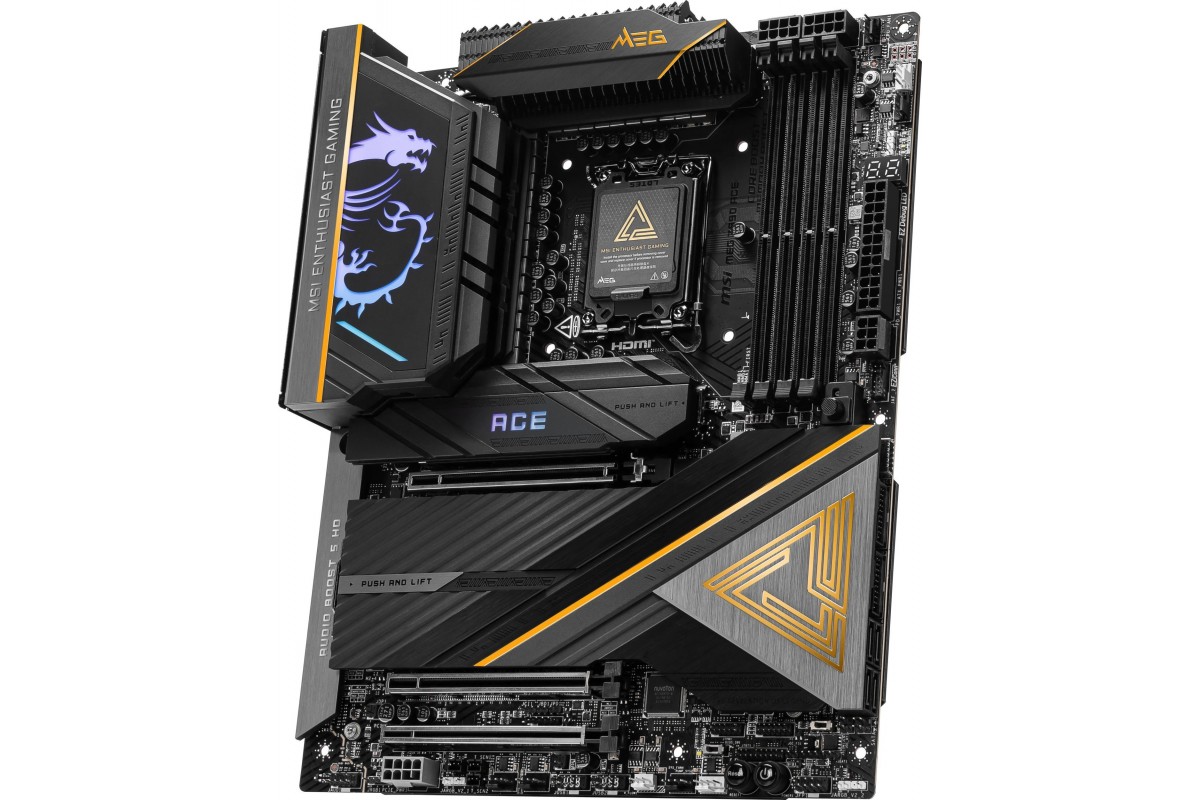

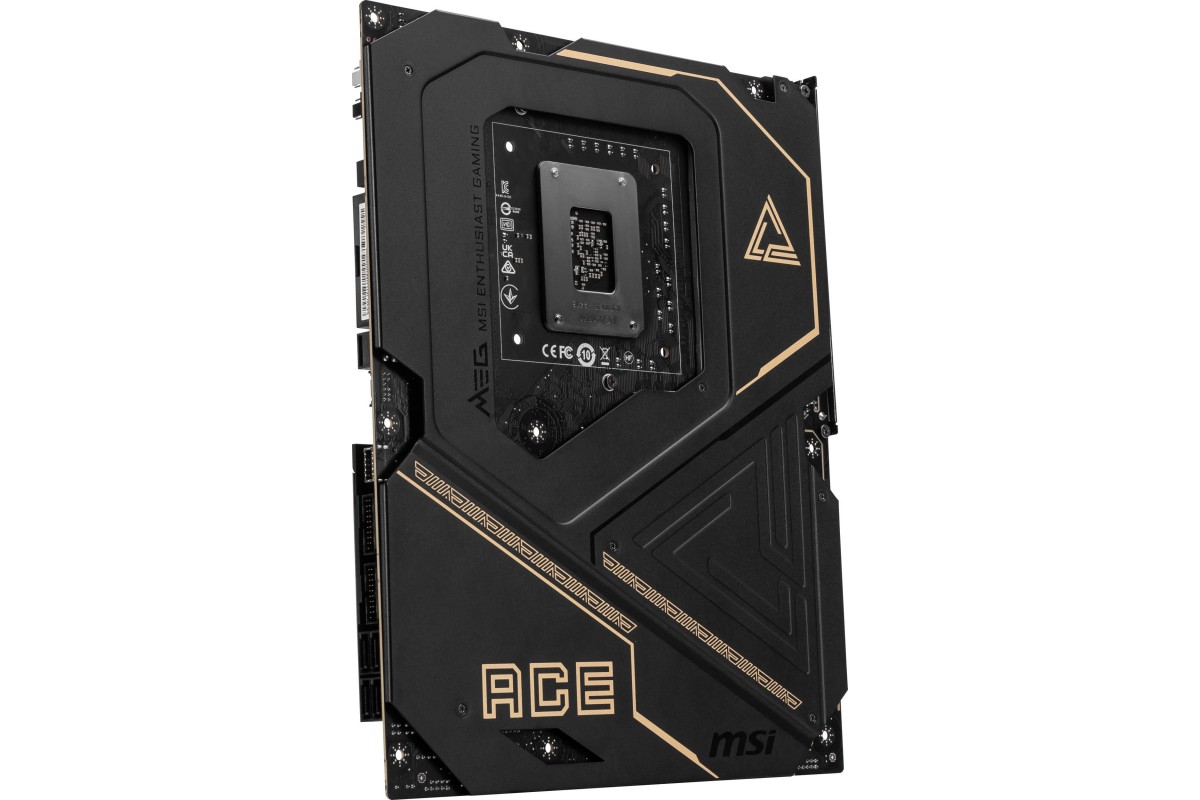

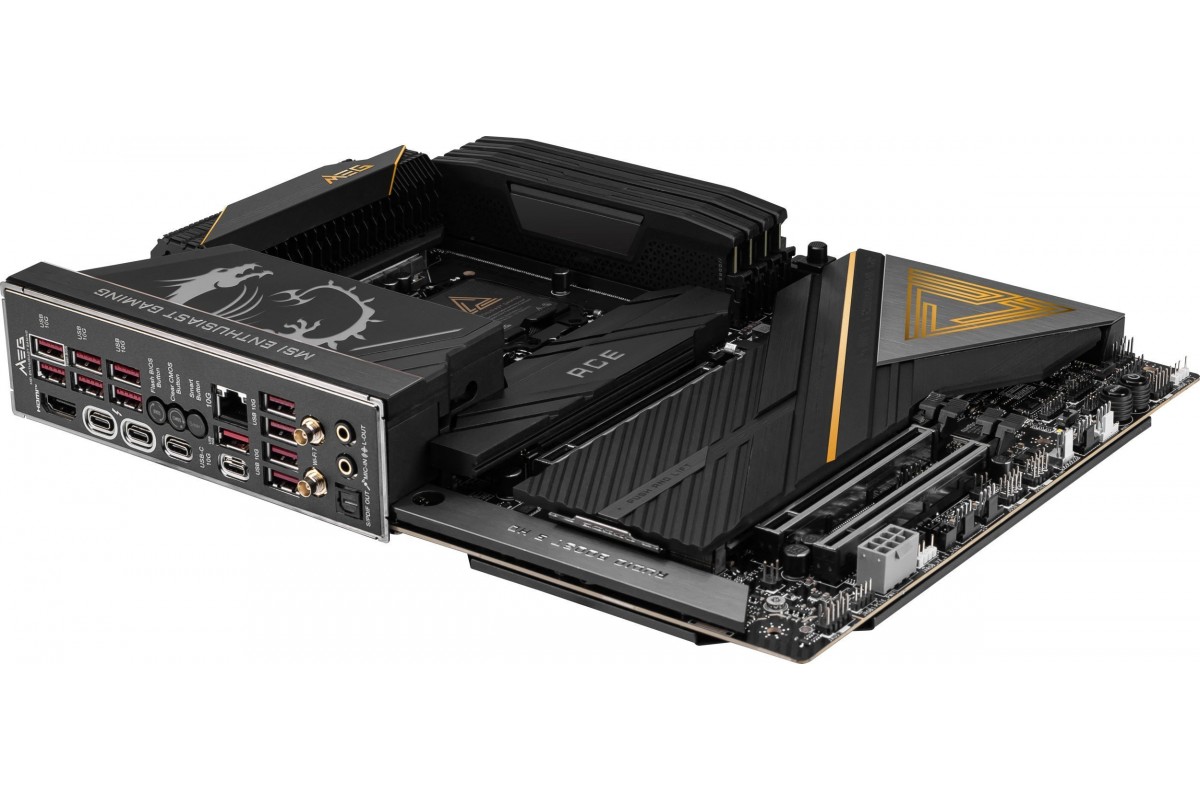

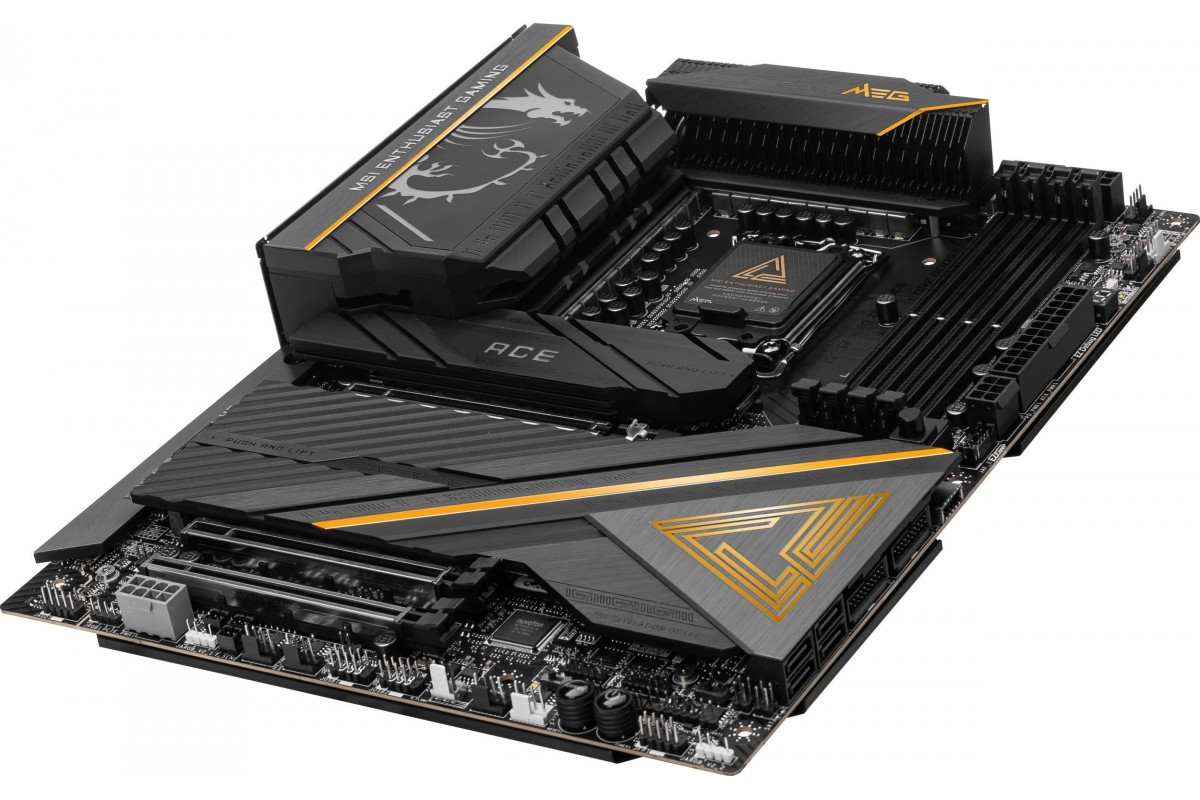

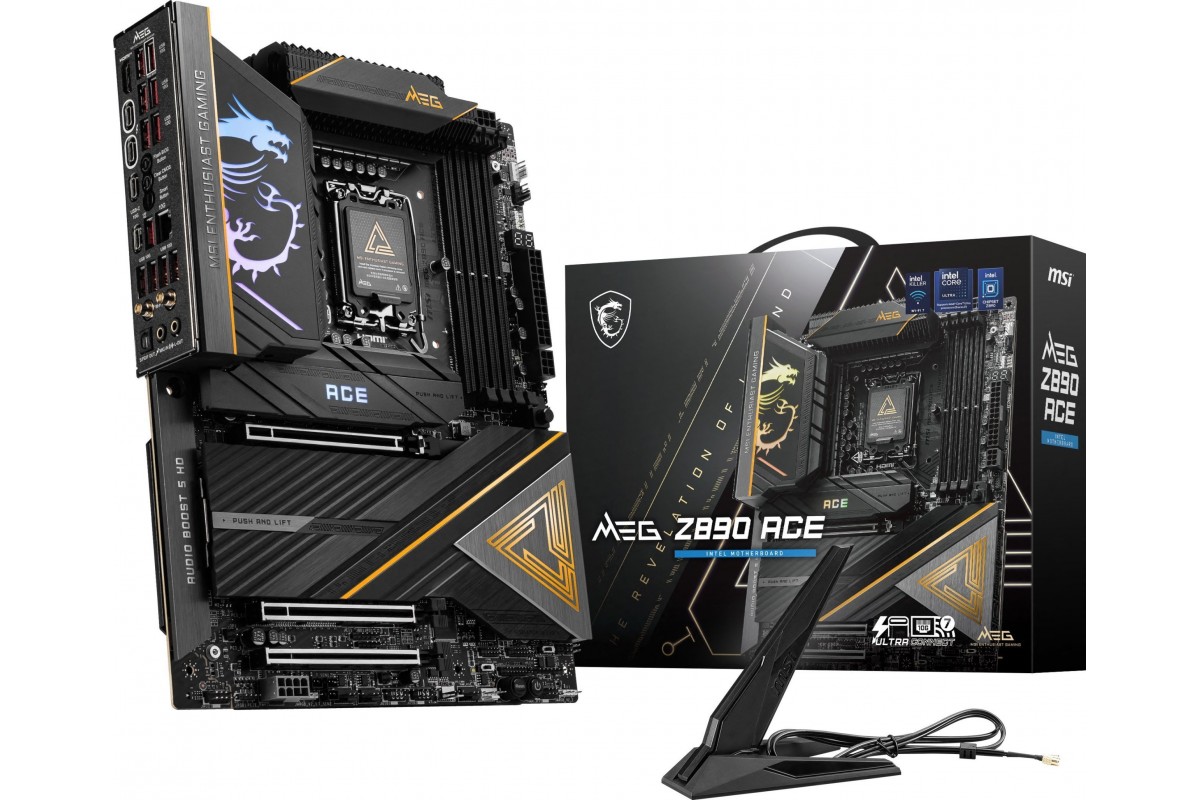

Intel Z890 MSI MEG Z890 ACE

Motherboard Form Factor
ATX
Motherboard Width [mm]
243.8
Motherboard Depth [mm]
304.8
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
Intel Z890
Motherboard CPU Socket
Socket 1851
Motherboard Supported Processors
Intel Core Ultra 5 Intel Core Ultra 7 Intel Core Ultra 9
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
9200 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 4082
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
100/1000/2500/5000/10000
Motherboard Network Card Chipset
Intel Killer BE1750x Wi-Fi 7 Marvell AQtion AQC113CS
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
PCI Express x16 (3 szt.)
Motherboard Drive Connectors
M.2 slot x5
Motherboard Internal Connectors
USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 USB-C 3.2 Gen 2x2 x1 USB-C Quick Charge x1 Złącze 7-pin ARGB+FAN x1 Złącze addressable RGB LED strip 5V x3 Złącze AIO_PUMP 4-pin x2 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze ATX 8-pin PCIe x1 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze czujnika otwarcia obudowy x1 Złącze pinowe Thunderbolt 5 AIC x1 Złącze przedniego panelu x2 Złącze RGB LED x1 Złącze SYS FAN 4-pin x5 Złącze TPM x1 Złącze Tuning Controller x1

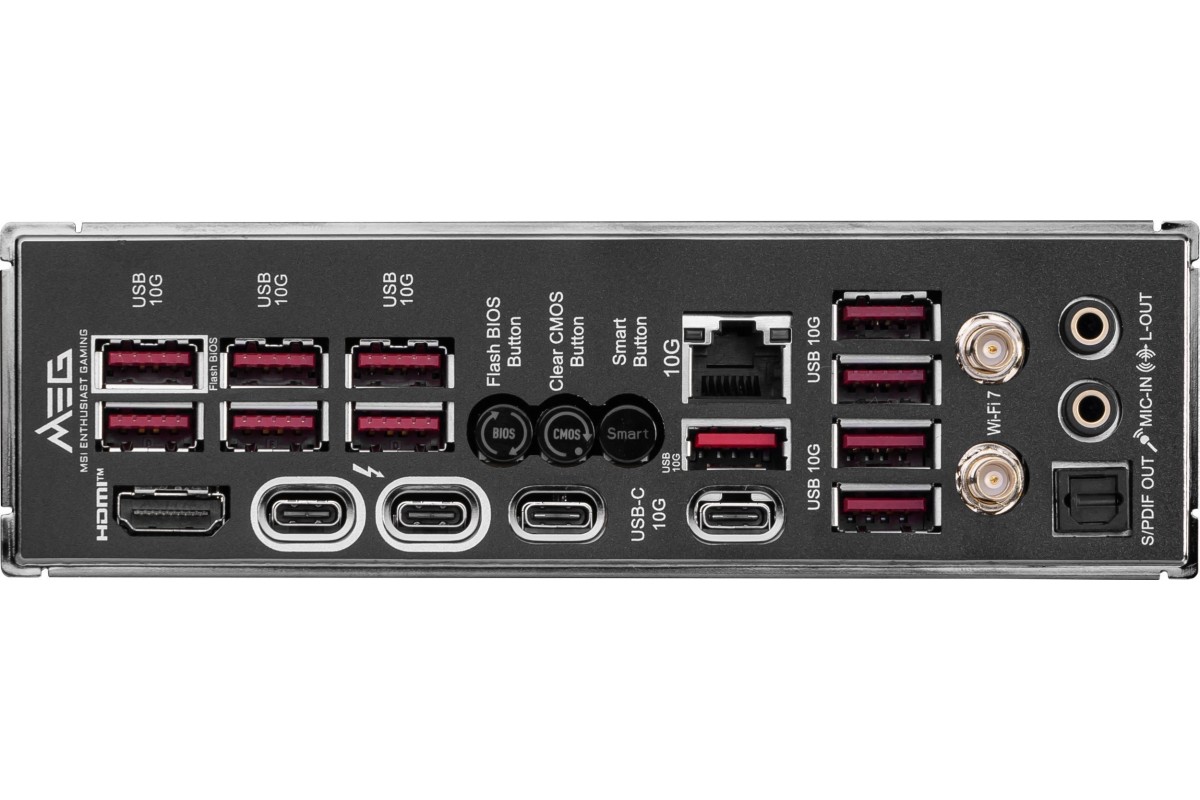

Motherboard Rear Panel
HDMI x1 Przycisk BIOS Flashback x1 Przycisk Clear CMOS x1 Przycisk Smart x1 RJ-45 x1 S/PDIF Optyczne x1 Thunderbolt 4 x2 USB 3.2 Gen 2 (3.1 Gen 2) x11 USB-C 3.2 Gen 2 (3.1 Gen 2) x2 Złącze anteny WiFi x2 Złącze audio x2

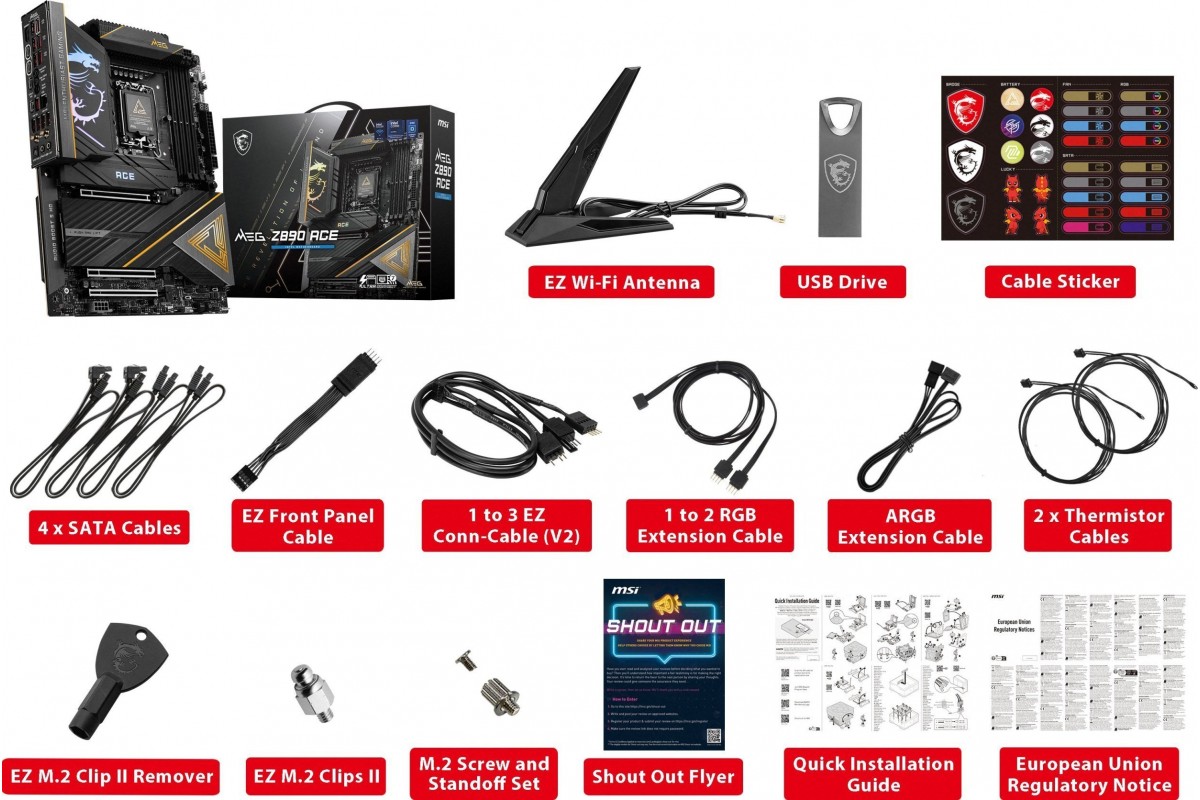

Motherboard Included Accessories
Antena WiFi Naklejki Pendrive Przedłużacz ARGB Przewód EZ Conn Przewód panelu przedniego Przewód SATA III x4 Splitter RGB LED Śruby do modułu M.2 Zestaw termistorów
