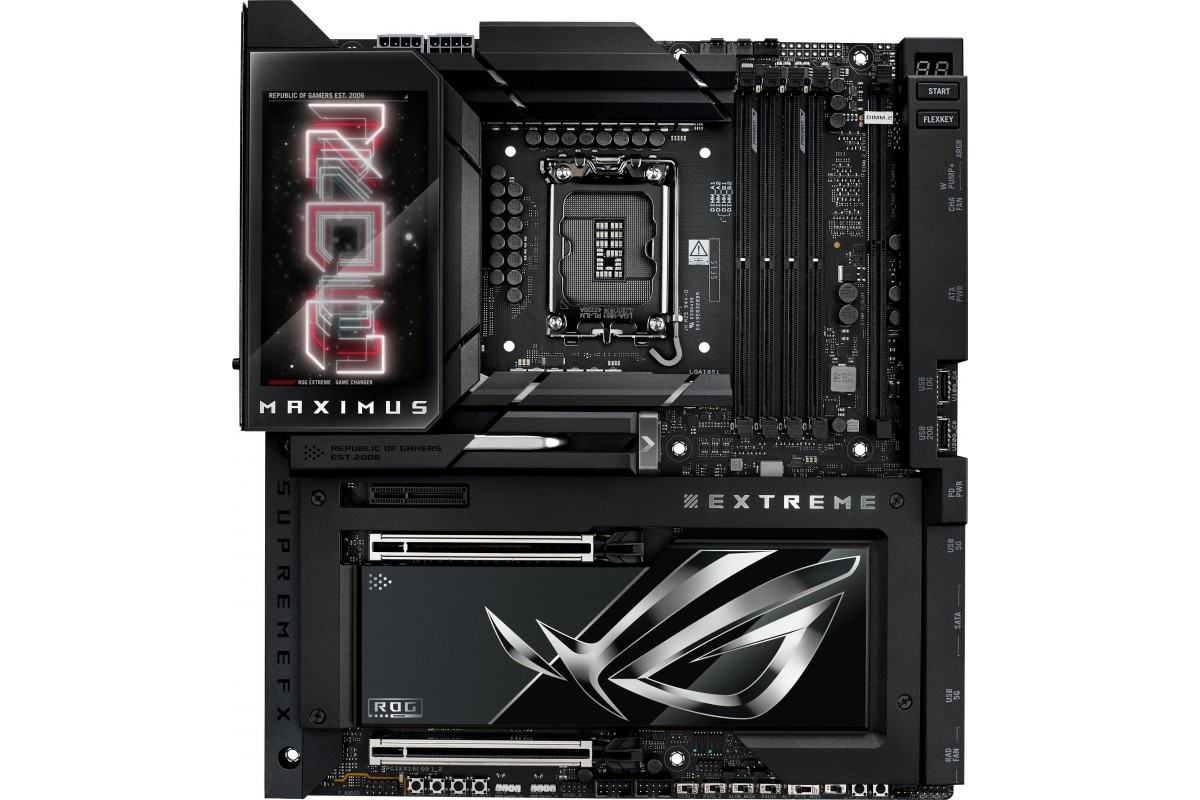

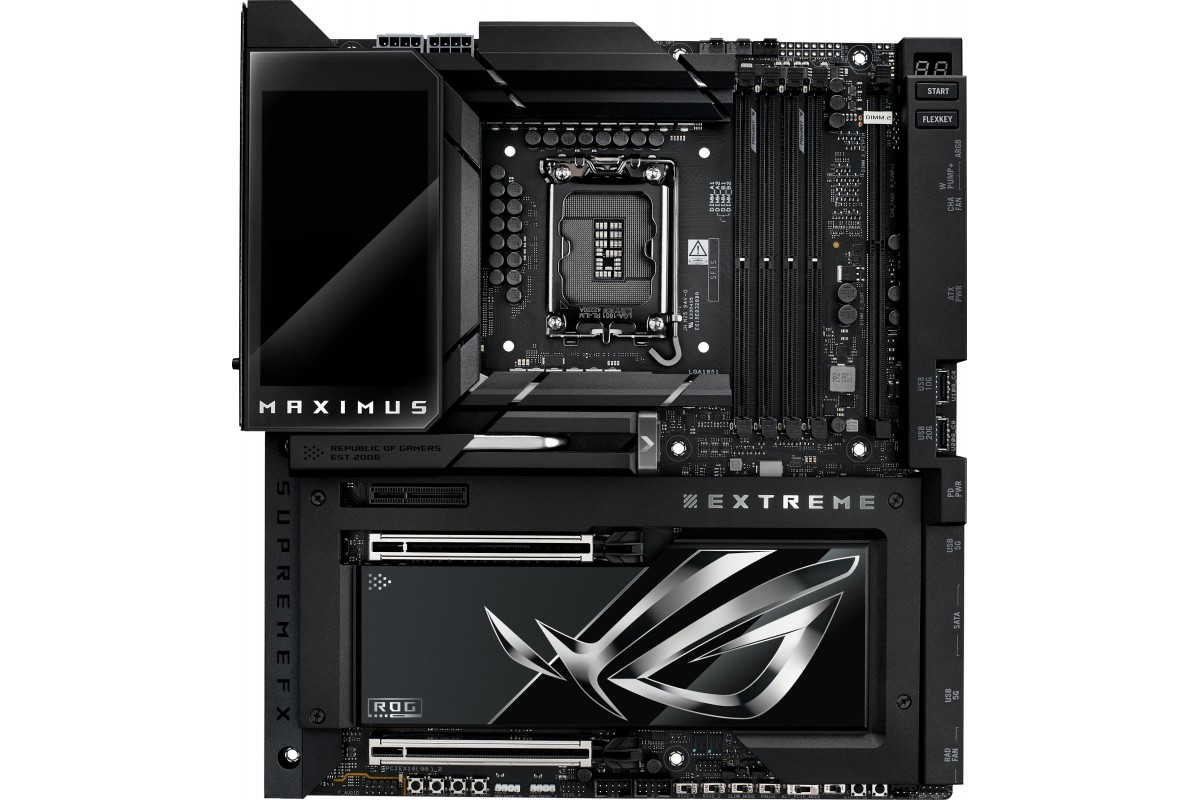

Intel Z890 Asus ROG MAXIMUS Z890 EXTREME

Motherboard Form Factor
Extended ATX
Motherboard Width [mm]
277
Motherboard Depth [mm]
305
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
Intel Z890
Motherboard CPU Socket
Socket 1851
Motherboard Supported Processors
Intel Core Ultra 5 Intel Core Ultra 7 Intel Core Ultra 9
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
8800 MHz
Motherboard Maximum Memory Capacity
192 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
SupremeFX ALC4082
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500 100/1000/2500/5000/10000
Motherboard Network Card Chipset
Intel 2.5GbE Marvell AQtion AQC113CS
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
PCI Express x16 (2 szt.) PCI Express x4 (1 szt.)
Motherboard Drive Connectors
M.2 slot x4 ROG Q-DIMM.2 (2x M.2 slot) x1 SATA 3 x4
Motherboard Internal Connectors
Przełącznik BIOS x1 Przełącznik PCIe x1 Przełącznik RSVD x2 Przełącznik slow mode x1 Przycisk BCLK x4 Przycisk FlexKey x1 Przycisk ReTry x1 Przycisk Safe Boot x1 Przycisk włączenia zasilania x1 Punkt pomiarowy ProbeIt x12 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 USB 3.2 Gen 2 (3.1 Gen 2) x1 USB-C 3.2 Gen 2x2 x1 Złącze 6-pin AURA Addressable Gen 2 x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze ATX 8-pin PCIe x1 Złącze audio panelu przedniego (AAFP) x1 Złącze AURA Addressable Gen 2 x2 Złącze CPU FAN 4-pin x1 Złącze CPU_OPT FAN 4-pin x1 Złącze czujnika termicznego x1 Złącze przedniego panelu x1 Złącze RSVD x1 Złącze SYS FAN 4-pin x4 Złącze W_PUMP+ x2 Złącze WB_SENSOR x1 Zworka trybu LN2 x1
Motherboard Rear Panel
HDMI x1 Przycisk BIOS Flashback x1 Przycisk Clear CMOS x1 RJ-45 x2 S/PDIF Optyczne x1 Thunderbolt 5 x2 USB 3.2 Gen 2 (3.1 Gen 2) x5 USB-C 3.2 Gen 2 (3.1 Gen 2) x2 USB-C 3.2 Gen 2x2 x1 Złącze anteny WiFi x2 Złącze audio x2
Motherboard Included Accessories
Antena WiFi Naklejki Otwieracz do butelek ROG Pendrive Przewód SATA III x2 Splitter ARGB LED x2 Splitter do wentylatorów x2 Śrubokręt Śruby do modułu M.2 Termopady Uchwyt do wentylatora pamięci RAM
