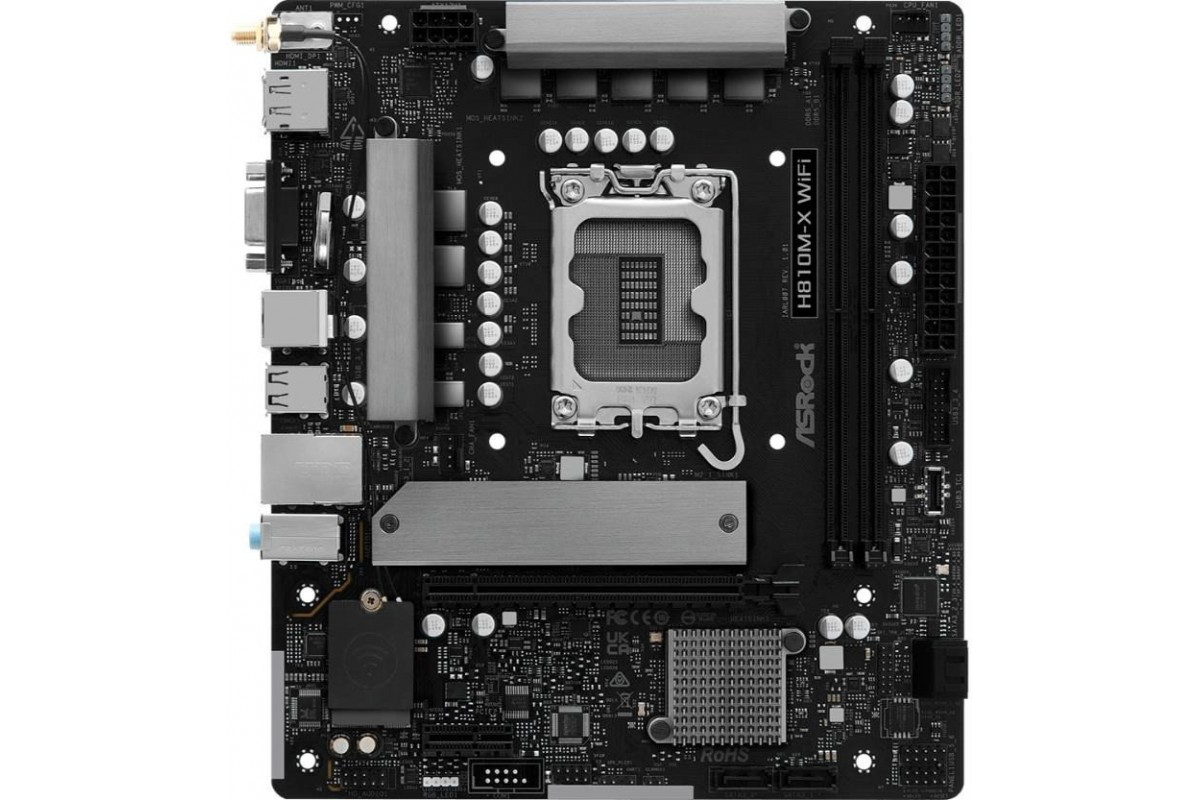

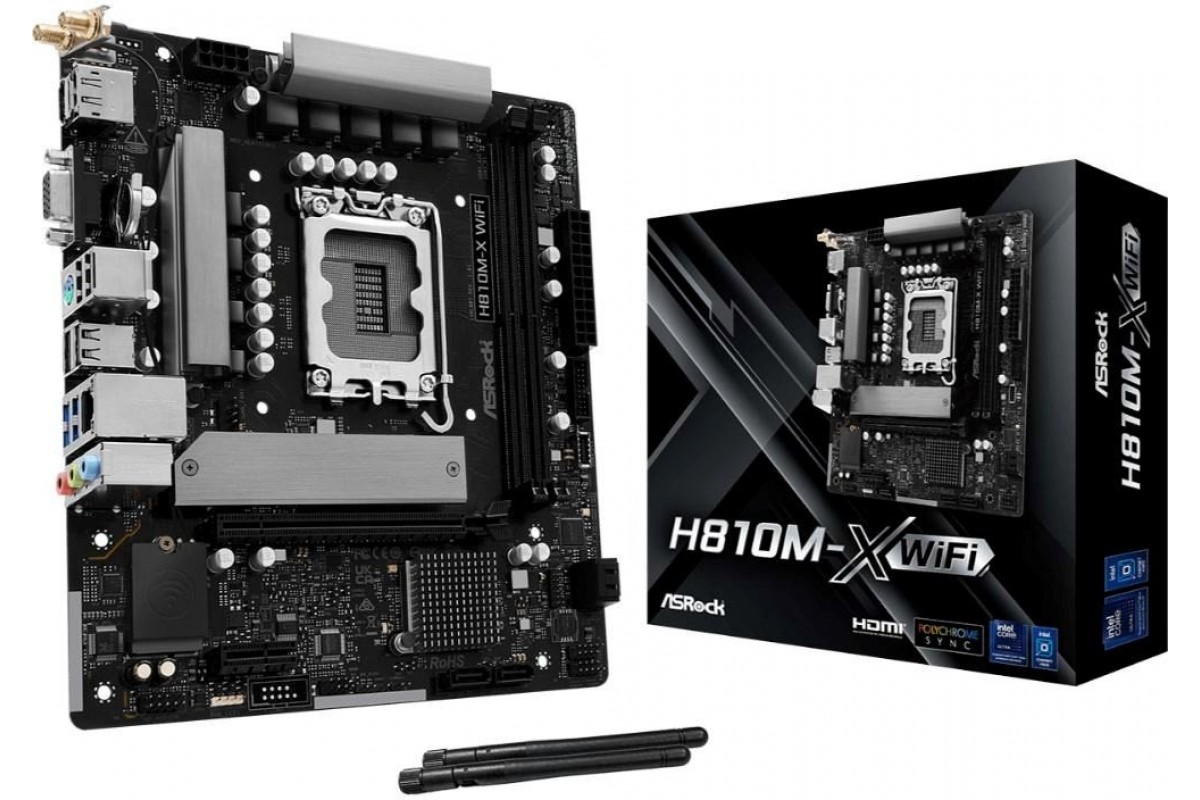

Intel H810 ASRock H810M-X WIFI

Motherboard Form Factor
Micro ATX
Motherboard Width [mm]
193
Motherboard Depth [mm]
220
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
Intel H810
Motherboard CPU Socket
Socket 1851
Motherboard Supported Processors
Intel Core Ultra 5 Intel Core Ultra 7 Intel Core Ultra 9
Motherboard RAID Controller
No
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
2
Motherboard Memory Frequency
6400 MHz
Motherboard Maximum Memory Capacity
128 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 897
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
Realtek RTL8125BG
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 5 (802.11 a/b/g/n/ac)
Motherboard Expansion Slots
M.2 Wi-Fi (1 szt.) PCI Express x1 (1 szt.) PCI Express x16 (1 szt.)
Motherboard Drive Connectors
M.2 slot x1 SATA 3 x4
Motherboard Internal Connectors
USB 2.0 x1 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze addressable RGB LED strip 5V x2 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze głośnika x1 Złącze RGB LED x1 Złącze SYS FAN 4-pin x1 Złącze TPM x1
Motherboard Rear Panel
D-Sub (VGA) x1 DisplayPort x1 HDMI x1 PS/2 (klawiatura/mysz) x1 RJ-45 x1 USB 2.0 x4 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 Złącze anteny WiFi x2 Złącze audio x3
Motherboard Included Accessories
Antena WiFi x2 Osłona I/O Przewód SATA III x2
