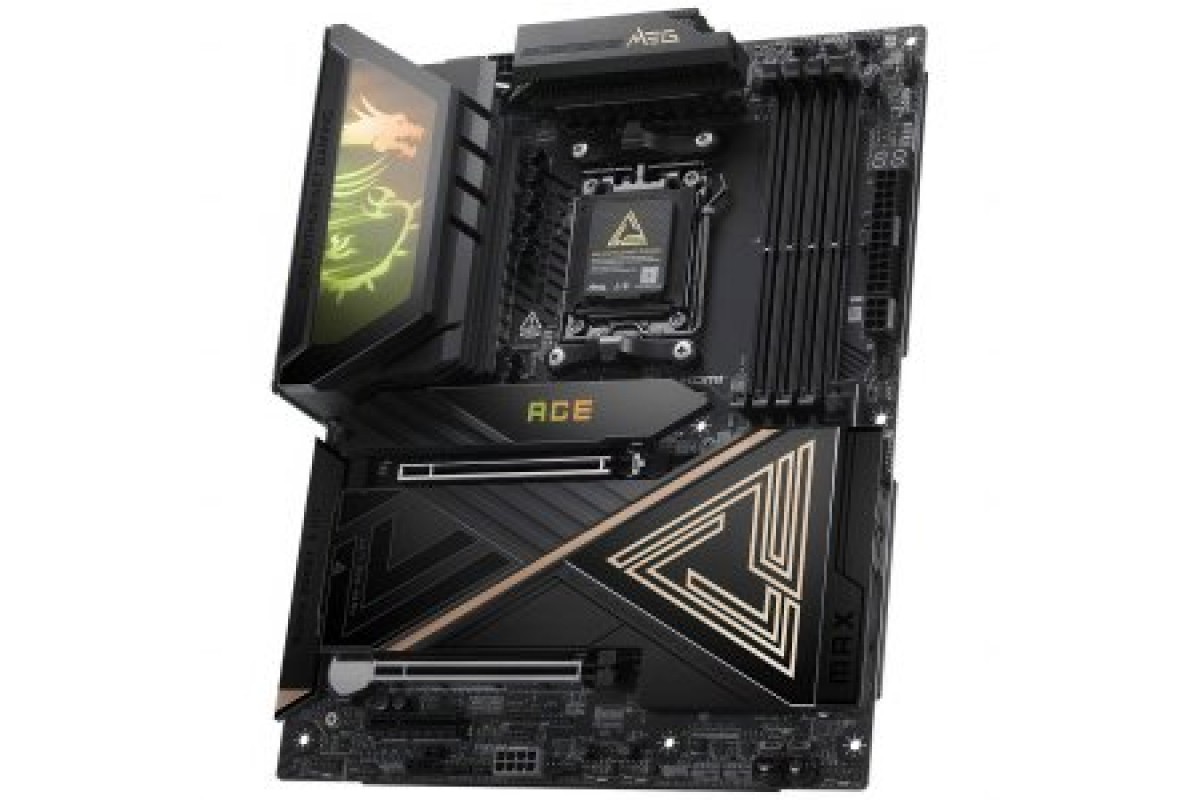

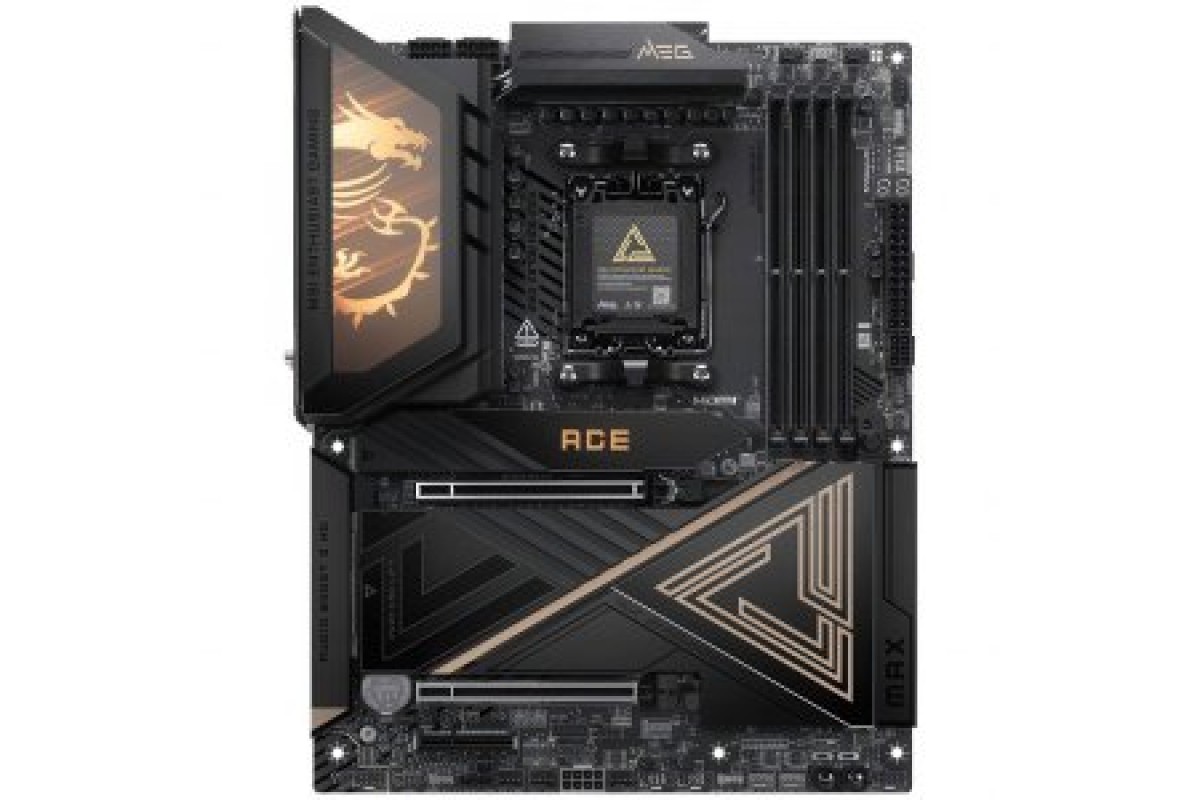

AMD X870E MSI MEG X870E ACE MAX
Motherboard Form Factor
ATX
Motherboard Width [mm]
243.8
Motherboard Depth [mm]
304.8
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
AMD X870E
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
4800 MHz 5200 MHz 5600 MHz 5800 MHz 6000 MHz 6200 MHz 6400 MHz 6600 MHz 6800 MHz 7000 MHz 7200 MHz 7600 MHz 7800 MHz 8000 MHz 8200 MHz 8400 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 4082
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
100/1000/2500/5000
Motherboard Network Card Chipset
Marvell AQtion AQC113CS Qualcomm Wi-Fi 7 QCNCM865 Realtek 8126
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
PCI Express x16 (2 szt.) PCI Express x4 (1 szt.)
Motherboard Drive Connectors
M.2 slot x5 SATA 3 x4
Motherboard Internal Connectors
EZ Debug LED x4 EZ Digit Debug LED x1 EZ Memory Detection LED x1 Przełącznik EZ LED Control x1 Przycisk Direct OC x2 Punkt pomiarowy V-Check x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 USB-C 3.2 Gen 2x2 x1 USB-C Quick Charge x1 Złącze 3-pin Flow x1 Złącze addressable RGB LED strip 5V x3 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze ATX 8-pin PCIe x1 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze czujnika otwarcia obudowy x1 Złącze EZ Conn x1 Złącze przedniego panelu x2 Złącze RGB LED x1 Złącze SYS FAN 4-pin x5 Złącze TPM x1 Złącze Tuning Controller x1

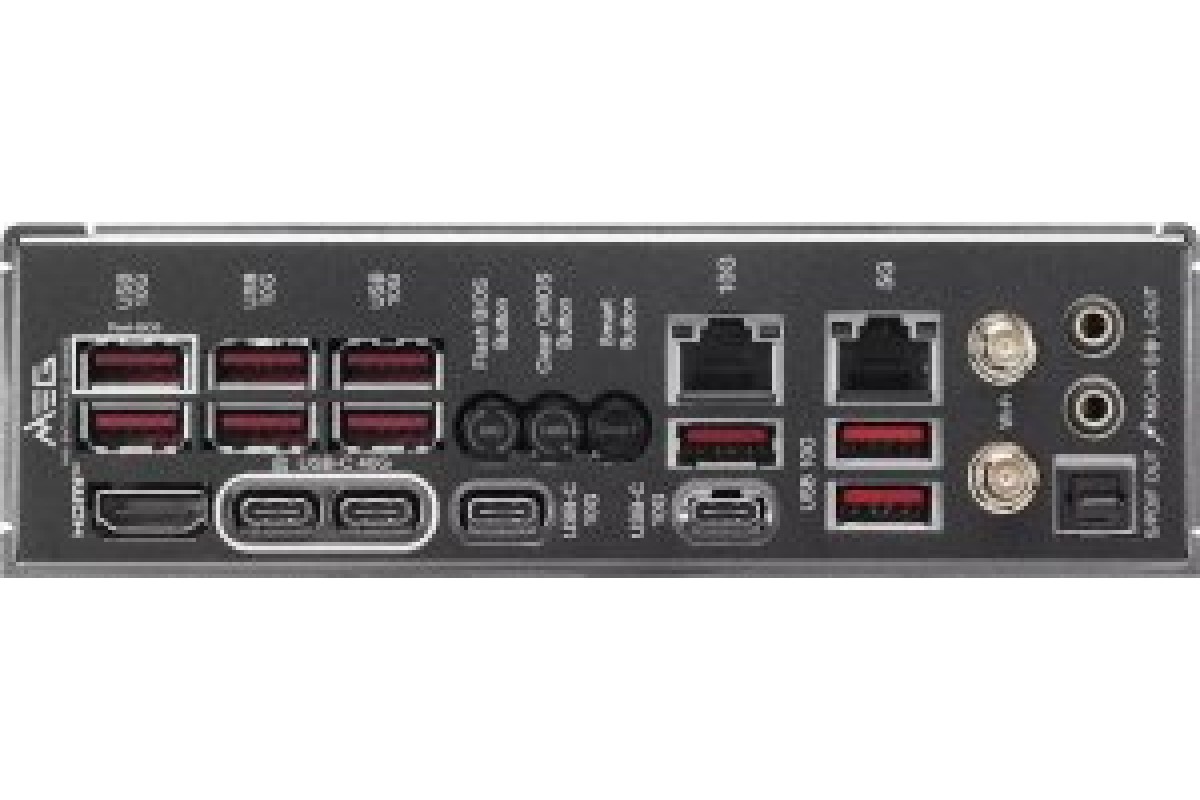

Motherboard Rear Panel
HDMI x1 Przycisk BIOS Flashback x1 Przycisk Clear CMOS x1 Przycisk Smart x1 RJ-45 x2 S/PDIF Optyczne x1 USB 3.2 Gen 2 (3.1 Gen 2) x9 USB-C 3.2 Gen 2 (3.1 Gen 2) x2 USB4 x2 Złącze anteny WiFi x2 Złącze audio x2

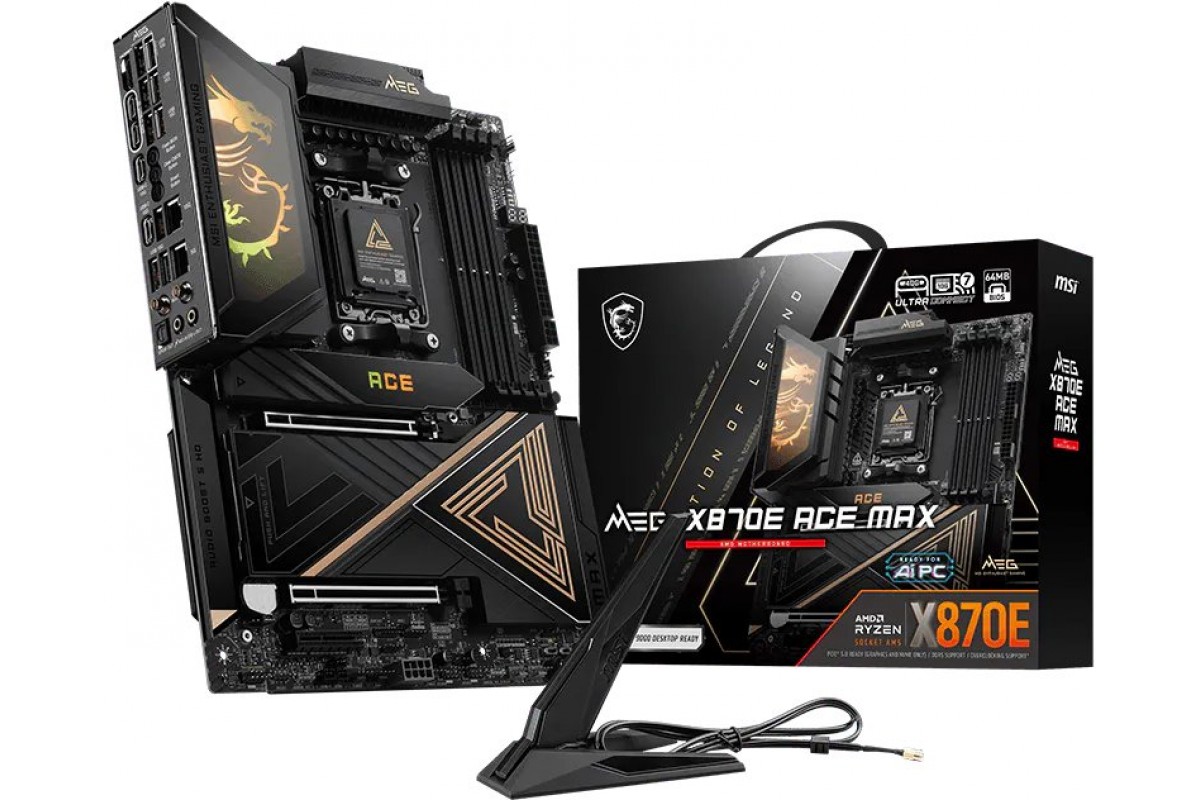

Motherboard Included Accessories
Antena WiFi Naklejki Pendrive Przewód czujnika termicznego x2 Przewód EZ Conn Przewód panelu przedniego Przewód SATA III x4 Splitter ARGB LED Śruby do modułu M.2
