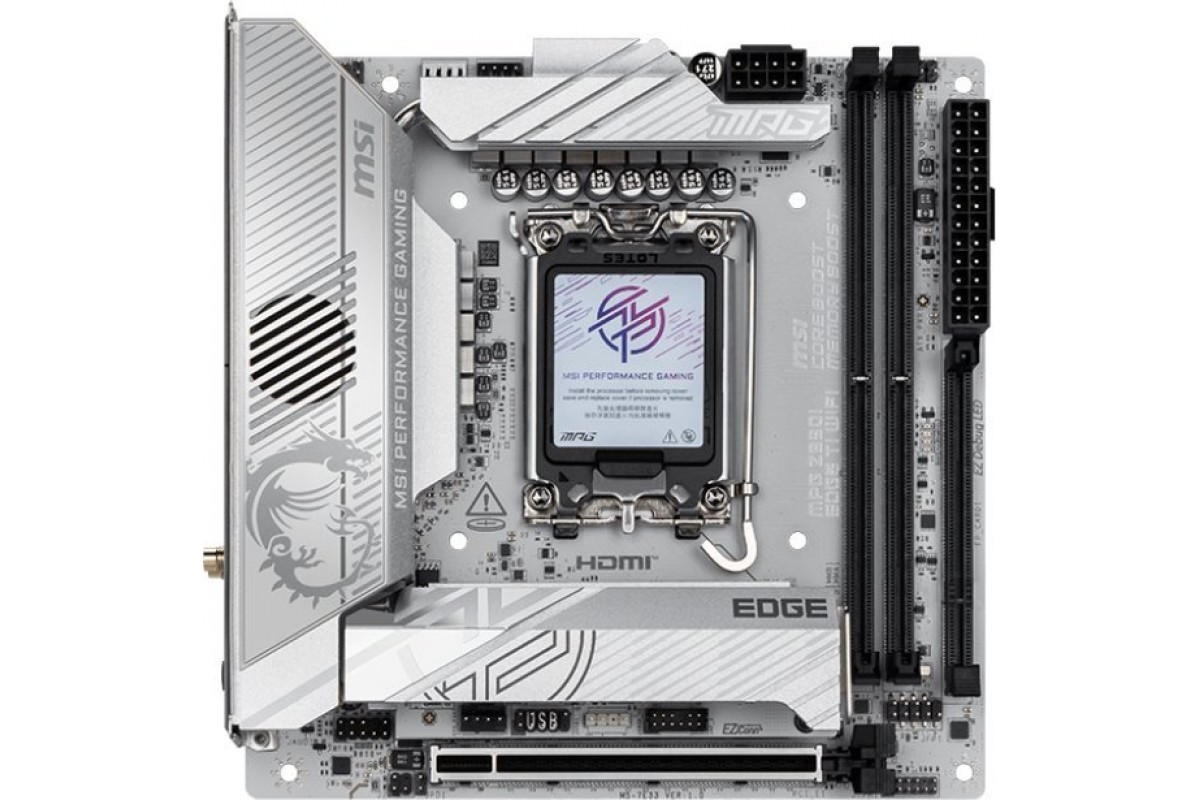

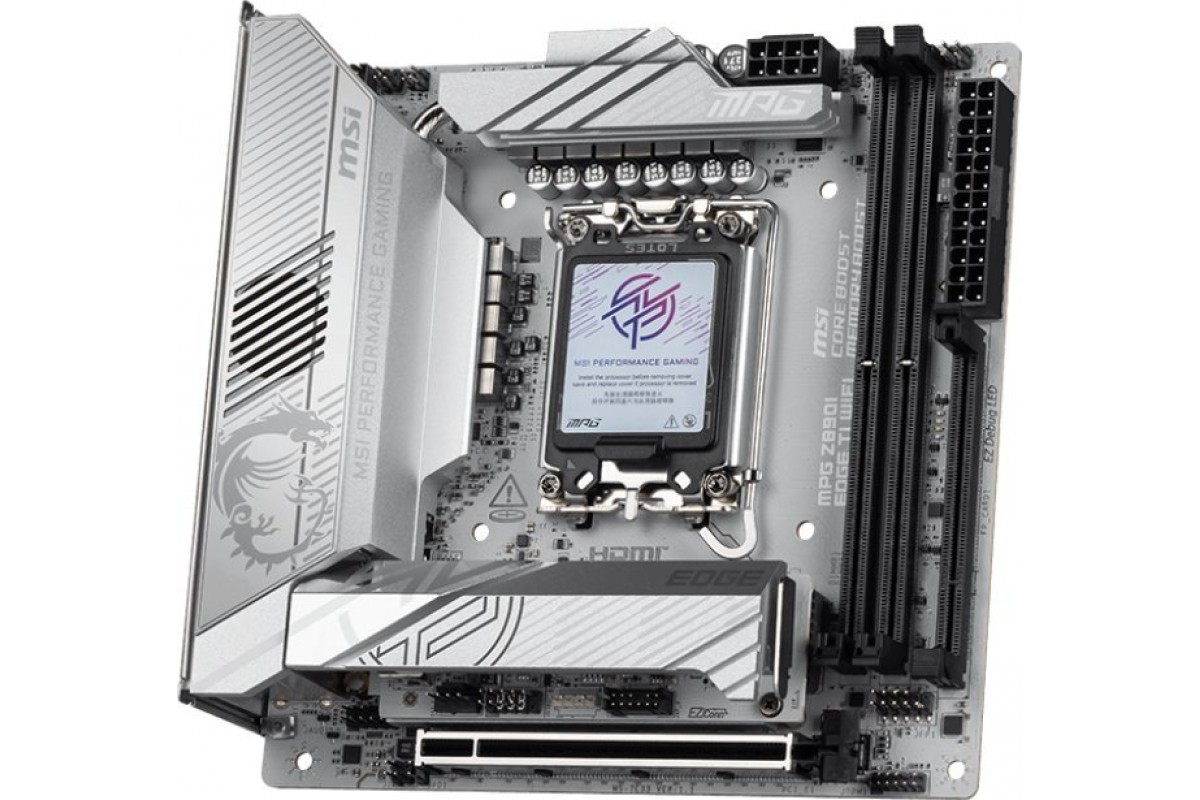

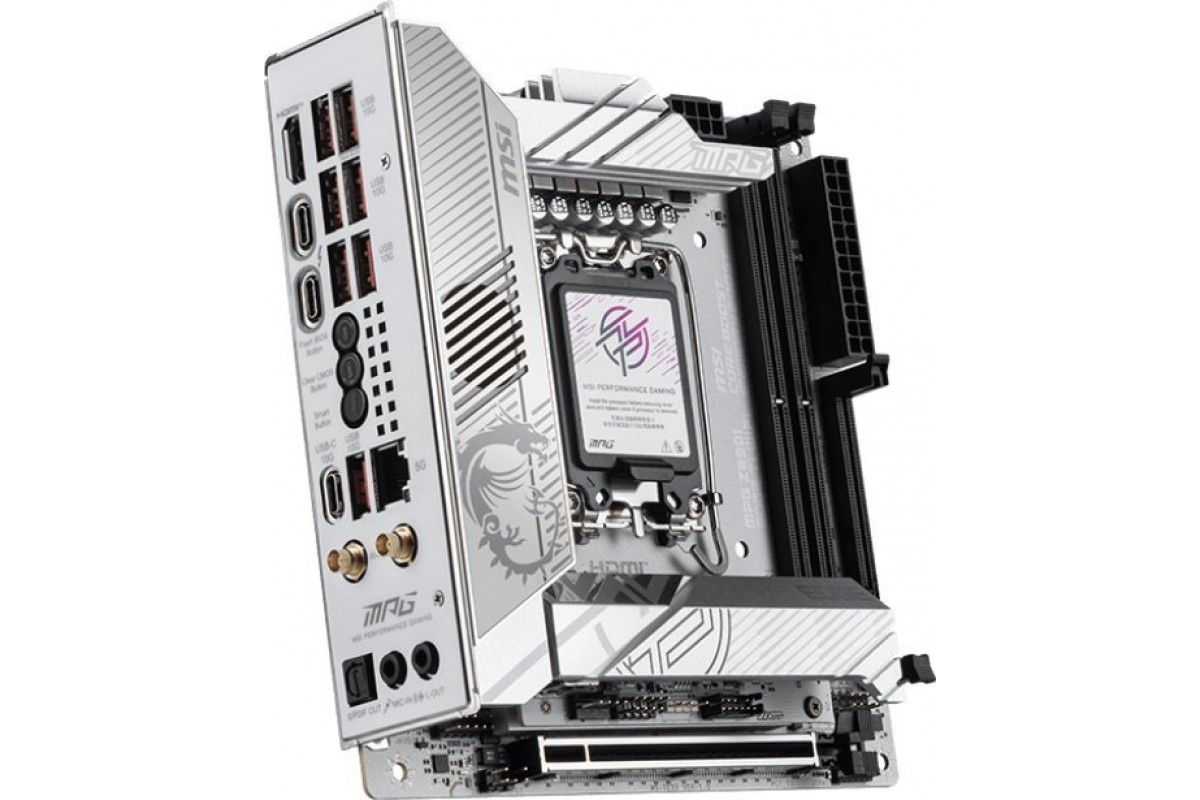

Intel Z890 MSI MPG Z890I EDGE TI WIFI

Motherboard Form Factor
Mini ITX
Motherboard Width [mm]
170
Motherboard Depth [mm]
170
Motherboard Color
White
Motherboard Usage
Gaming
Motherboard Chipset
Intel Z890
Motherboard CPU Socket
Socket 1851
Motherboard Supported Processors
Intel Core Ultra 5 Intel Core Ultra 7 Intel Core Ultra 9
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
4800 MHz 5200 MHz 5600 MHz 5800 MHz 6000 MHz 6200 MHz 6400 MHz 6600 MHz 6800 MHz 7000 MHz 7200 MHz 7400 MHz 7600 MHz 7800 MHz 8000 MHz 8200 MHz 8266 MHz 8400 MHz 8600 MHz
Motherboard Maximum Memory Capacity
128 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 4080
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
100/1000/2500/5000
Motherboard Network Card Chipset
Intel Killer BE1750x Wi-Fi 7 Intel Killer E5000
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
PCI Express x16 (1 szt.)
Motherboard Drive Connectors
M.2 slot x4 SATA 3 x4
Motherboard Internal Connectors
EZ Debug LED x4 USB 2.0 x1 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2x2 x1 Złącze addressable RGB LED strip 5V x1 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze czujnika otwarcia obudowy x1 Złącze czujnika termicznego x1 Złącze EZ Conn x1 Złącze przedniego panelu x2 Złącze SYS FAN 4-pin x1 Złącze TPM x1

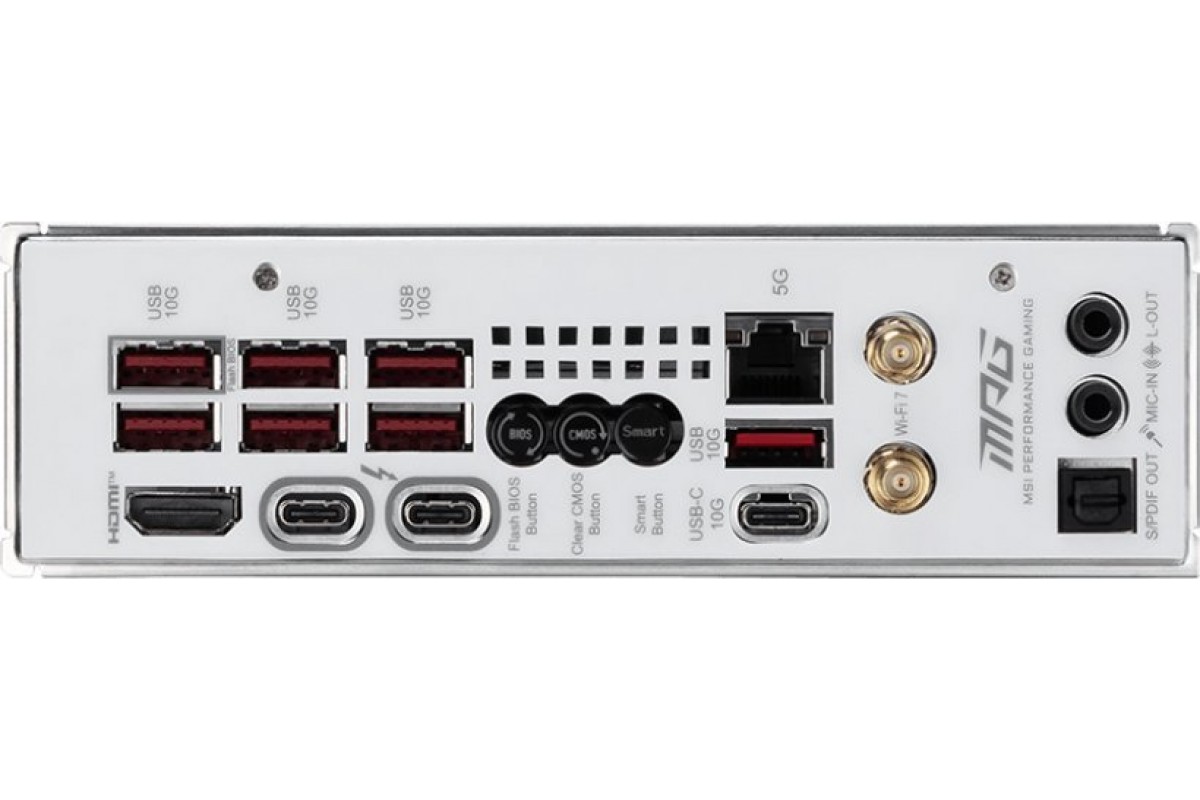

Motherboard Rear Panel
HDMI x1 Przycisk BIOS Flashback x1 Przycisk Clear CMOS x1 Przycisk Smart x1 RJ-45 x1 S/PDIF Optyczne x1 Thunderbolt 4 x2 USB 3.2 Gen 2 (3.1 Gen 2) x7 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 Złącze anteny WiFi x2 Złącze audio x2
Motherboard Included Accessories
Antena WiFi Karta 5-in-1 XPANDER Naklejki Pendrive Przewód 5-in-1 XPANDER USB 5Gbps Przewód EZ Conn Przewód panelu przedniego Przewód SATA III x2 Śruby do modułu M.2
